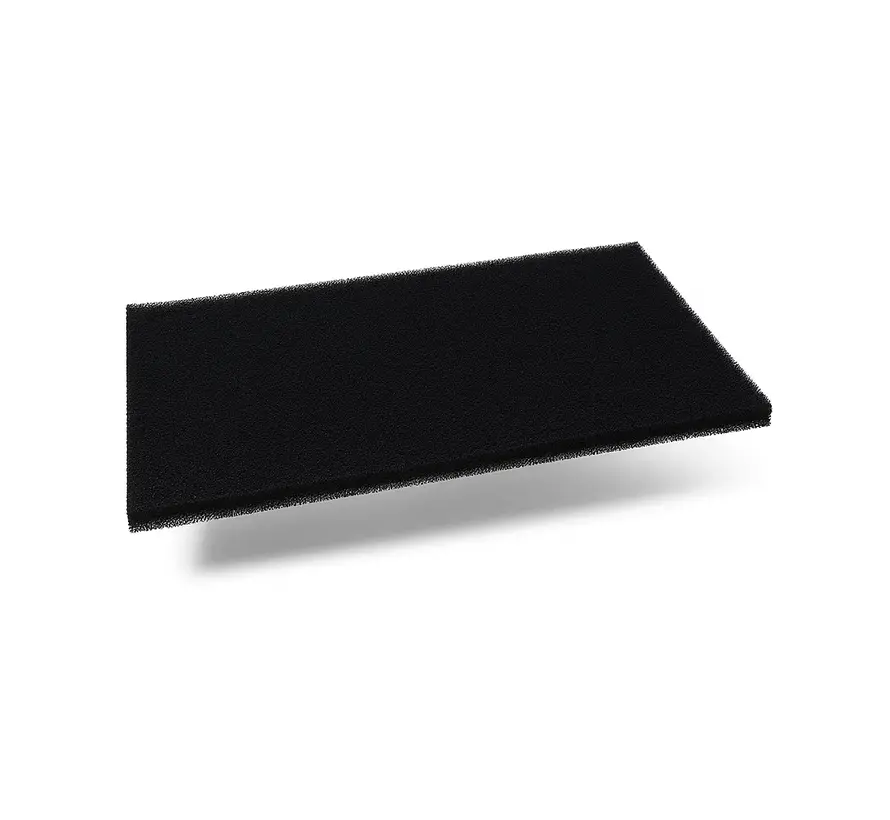

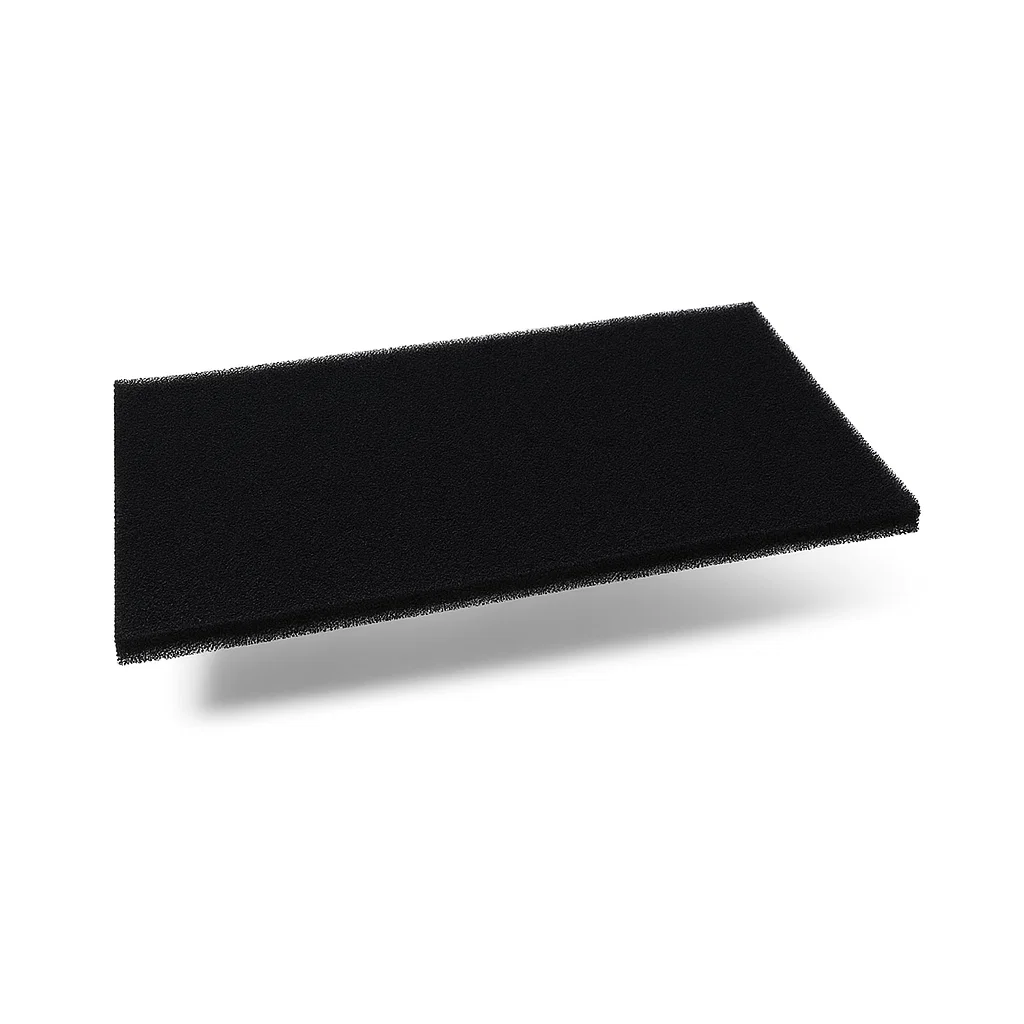

Active carbon mat 500x500x12 mm - AK500

Active carbon mat 500x500x12 mm

This is a carbon impregnated filter foam

HQ Carbon filter foam is impregnated with highly active carbon. This impregnation maximises the effective surface area of the filter medium without changing its volume.

Approximately 80 - 100 grams of activated carbon are impregnated per millimetre of material thickness and square metre of foam, resulting in a specific surface area of 900 - 1300 m² per gram.

Moreover, the open-cell structure of the filter foam reduces the pressure drop during filtration to a minimum. This ensures optimum air distribution and thus maximum utilisation of the carbon material at minimum energy consumption.
