Brink Allure B16-25 HRD(2100) | SWB HR | Filter | 531505

Brink Allure B16-25 HRD (2100)| SWB HR filter / side connection short / SWB HR, Downflow

This set consists: of 1 filter - Size: 465 x 465 mm.

This wtw filter set is produced in-house by hq-filters.co.uk with the filter standard ISO 16890 , which is equal to the original filters.
With our own production, we can offer high quality product alternatives at attractive prices.

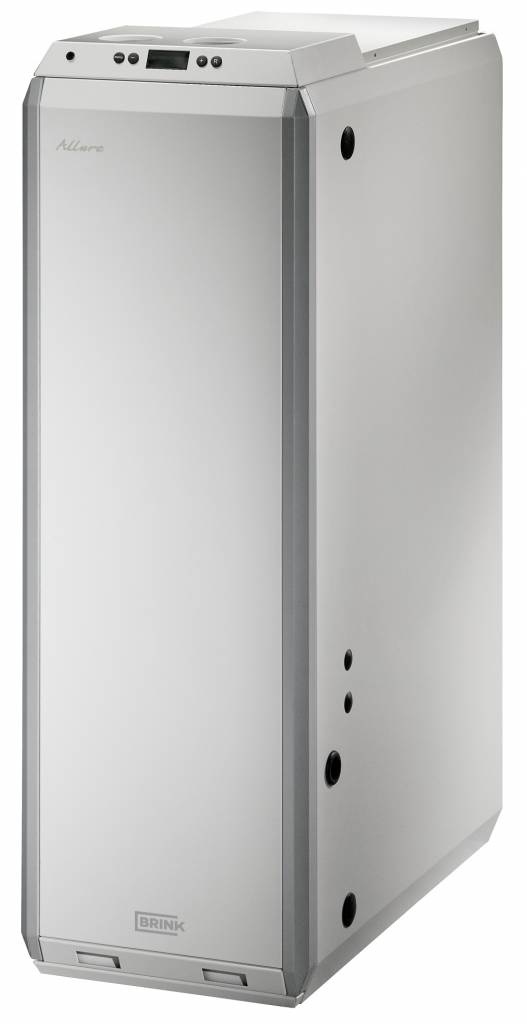

Suitable for: Brink Allure B16-25 HRD(2100) | SWB HR

Filter class: G3 - EN779:2012 | Iso coarse 50% - ISO 16890

ATTENTION!
AT ALLURE DOWNFLOW THE FILTER IS NOT IN THE APPLIANCE.
It is in one of the filter assemblies below:
- Filter cassette open return
- Filter return Allure (order 2 units)
- Filter cassette side entry, (short or long)

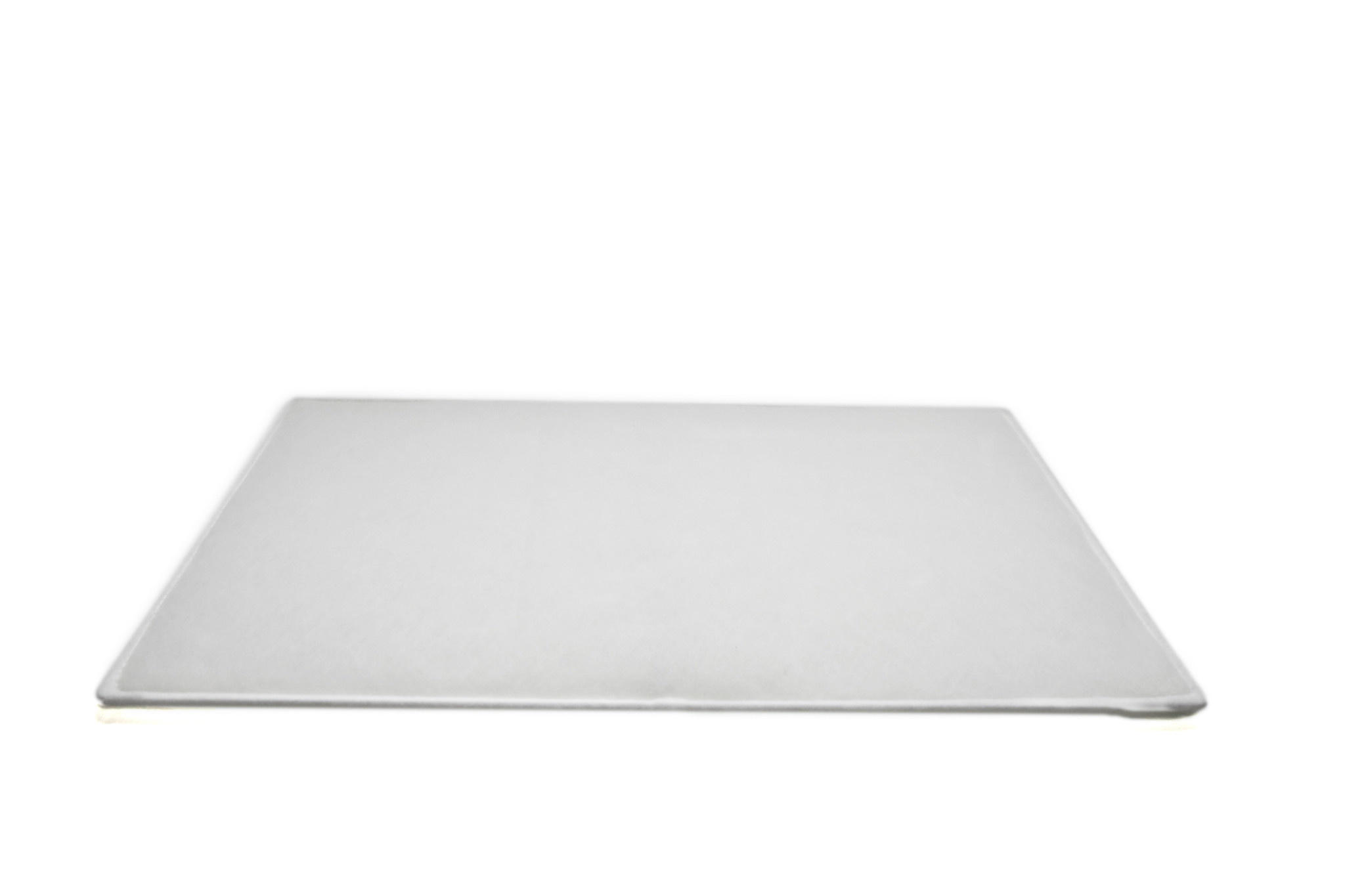

Type: wire frame filter

Dimensions: 465 x 465 mm.

Brand: hq-filters.nl

Brink no. 580525 - 531505

The filter standard : EN799:2012 has been replaced since 1 July 2018 by the filter standard : ISO16890
Here, filters are classified into so-called ePM categories.
This classification gives an accurate indication of which particle sizes are filtered out of the air.

PM1 stands for all types of particulate matter smaller than 1 micron (μ = one thousandth of a millimetre):
PM1: 1μ = 0.001 mm
PM2.5: 2.5μ = 0.0025 mm
PM10: 10μ = 0.01 mm
The 'e' for PM1 stands for 'efficiency' and indicates the efficiency of the air filter in capturing PM1.

Using these values, the standard now splits filters into four groups that filter different dust particles:
ISO Coarse < 50% (sand, lint, hair)
ISO ePM10 ≥ 50% (pollen, stone dust)
ISO ePM2.5 ≥ 50% (mould spores, toner dust)
ISO ePM1 (combustion particles, nanoparticles, viruses)


For questions, suggestions or special filter requests, call 0513-648364 or email [email protected]
Frequently asked questions about ww filters can be found here

You can easily replace the WTW filters for the Brink Allure yourself and install them in your WTW unit
