Brink Elan 10 -2.0 | 532500
Brink Elan 10 2.0 | filter - original

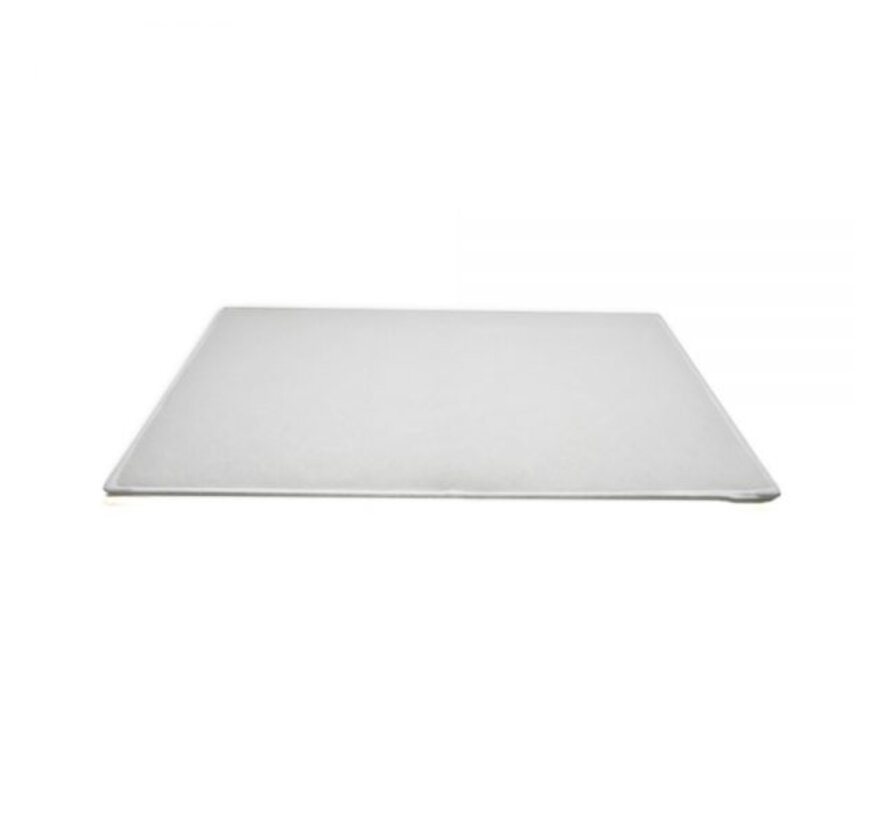

This set consists: of 1 filter - Packed by piece, Size: 551 x 332 mm.

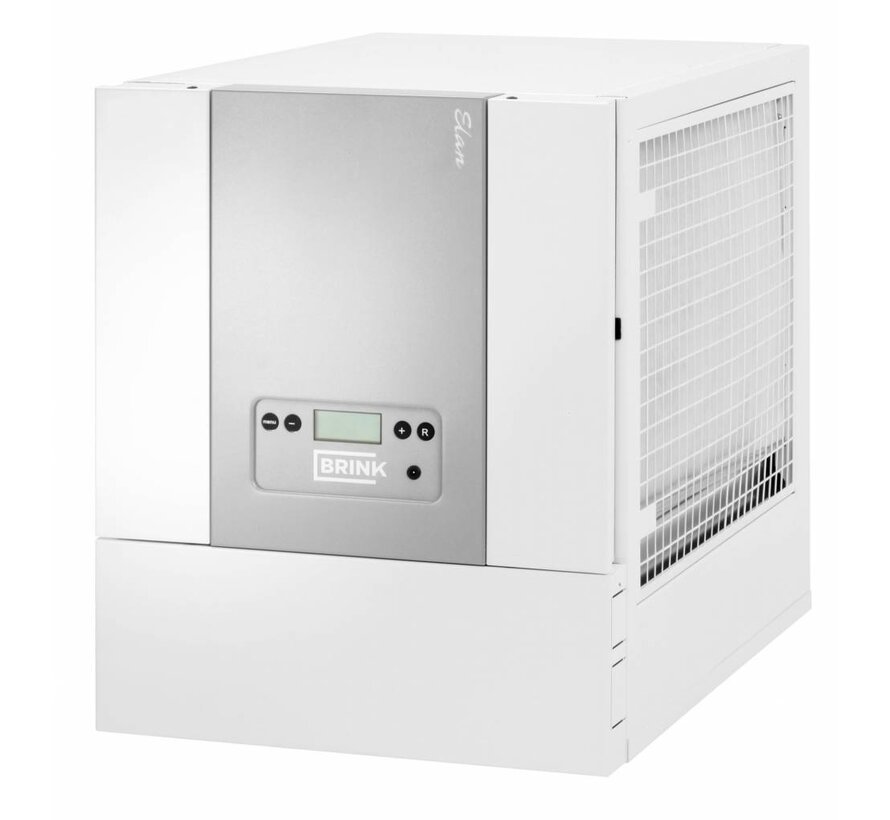

Suitable for: Elan 10 2.0
The serial number of the unit starts with 005700xxxx.
Filter class: G3 - EN779:2012 | Iso coarse 50% - ISO 16890
Type: wire frame filter
Size: 551 x 332 mm.
Brand: Brink
Brink no. 580850 - 532502 - 532500
By purchasing these wtw filters, you bring fresh air from outside into your home. Good ventilation is important to maintain the indoor climate of the home, but also to ensure that dust, dirt, bacteria and mould cannot accumulate in the ventilation system.
Regular filter changes mean significant energy savings.
The filter standard : EN799:2012 has been replaced since 1 July 2018 by the filter standard : ISO16890
Here, filters are classified into so-called ePM categories.
This classification gives an accurate indication of which particle sizes are filtered out of the air.
PM1 stands for all types of particulate matter smaller than 1 micron (μ = one thousandth of a millimetre):
-
PM1: 1μ = 0.001 mm
-
PM2.5: 2.5μ = 0.0025 mm
-
PM10: 10μ = 0.01 mm
The 'e' for PM1 stands for 'efficiency' and indicates the efficiency of the air filter in capturing PM1.
Using these values, the standard now splits filters into four groups that filter different dust particles:
-
ISO Coarse < 50% (sand, lint, hair)
-
ISO ePM10 ≥ 50% (pollen, stone dust)
-
ISO ePM2.5 ≥ 50% (mould spores, toner dust)
-
ISO ePM1 (combustion particles, nanoparticles, viruses)
For questions, suggestions or special filter requests, call 0513-648364 or email [email protected]
The WTW filters for the Brink Elan can easily be replaced and installed in your WTW unit yourself
