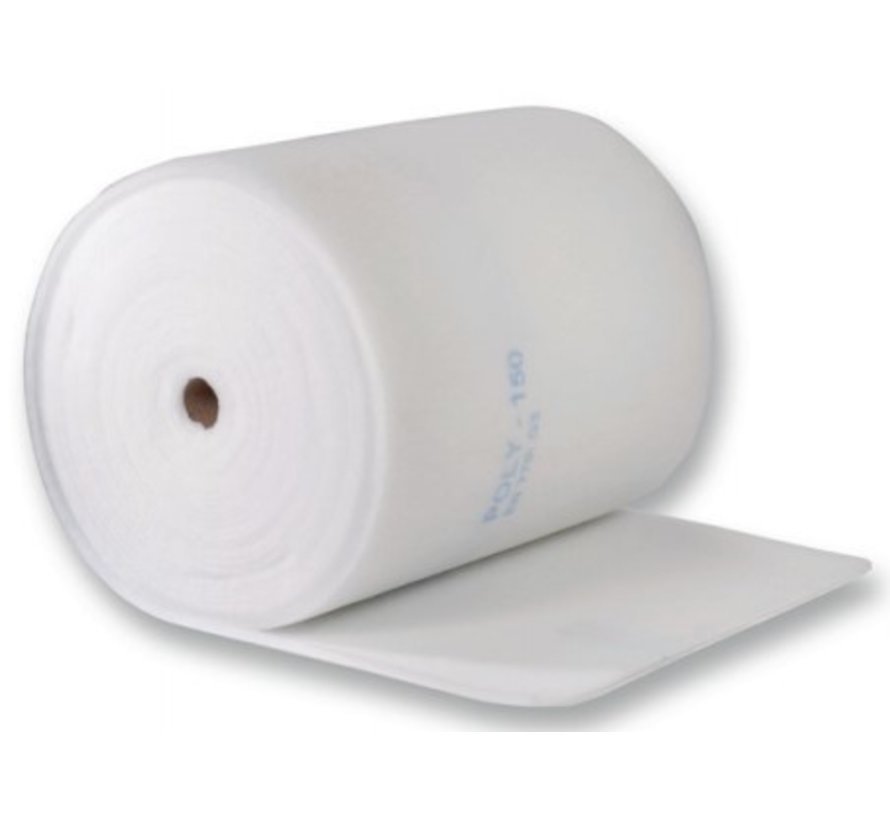

Filter cloth G2 - ISO Coarse 50% - 1000 x 2000 x 5 mm.
Filter cloth G2 - ISO Coarse 50% (1000 x 2000 x 5 mm)
Main points
| Feature | Specification |
|---|---|
| Air flow | 5400 m3/h/m2 |
| Air speed | 1.5 m/s |
| Initial pressure drop | 20 - 250 Pa |
| Average arrest | 79% |
| Dust holding capacity | 450 g/m2 (at 250 Pa) |
| Washable | No |
| Certifications | ISO16890, EN45545, NFF16-101 F1 |
Filter cloth G2 - ISO Coarse 50%
Filter Cloth G2 - ISO Coarse 50% is a high-quality air filter cloth specially designed for coarse filtration in various air treatment systems. This filter cloth is widely used in industrial applications, car paint shops, ship engine rooms and ventilation systems in offices and public buildings.
Order your G2 filter cloth now
Applications of Filter Cloth G2
-
Air inlets of ventilation systems
-
Pre-filter in air handling units
-
Railway industry and public buildings
-
Car paint shops and engine rooms on ships
Technical properties
The VNF 150 series filter cloth is thermally bonded and reinforced for high dust absorption. The clean air side is smoothed and printed, making installation easy.
Efficiency and air permeability
With an airflow capacity of 5400 m3/h/m2 and an average arrest rate of 79%, the filter cloth captures a large proportion of coarse dust particles without impeding air circulation.
Installation and maintenance
The filter cloth can be easily installed in standard filter frames or cabinets. Please note that this filter cloth is not washable and should be replaced periodically for optimal performance.
Safety and certification
This filter complies with several European safety standards, including:
-
ISO16890 (European standard for air filtration)
-
EN45545 (Fire safety in railway applications)
-
NFF16-101 F1 and NF P 92-503 M1 (Fire safety classification)
What is an ISO Coarse 50% filter?
An ISO Coarse 50% filter refers to its efficiency in filtering coarse dust. This type of filter is suitable for environments requiring high air circulation and basic filtration.
How does this filter compare to other filters?
This G2 filter cloth is a pre-filter, meaning it captures larger dust particles before the air goes to finer filters, such as an F7 or HEPA filter.
Why choose filter cloth G2 from WTW-Filtershop?
-
High quality dust absorption (450 g/m2)
-
Easy to install thanks to its smoothed structure
-
Fire retardant and safety certified
-
Suitable for various applications
Ordering and customisation
Do you need a specific size? Contact us for a no-obligation quotation at [email protected] or call 0513-648364.
Frequently asked questions
How often should I replace the filter cloth?
This depends on the application and the level of dust exposure, but it is usually recommended to change the filter cloth every 3 to 6 months.
Can I wash the filter cloth?
No, this filter cloth is not washable and should be replaced as soon as it becomes saturated with dust.
What does "average arrest 79%" mean?
It means that the filter captures about 79% of coarse particles from the air, providing better air quality.
Can this filter cloth be used in car paint shops?
Yes, this filter cloth is widely used as a pre-filter in car paint shops to capture dust and dirt before the air is further filtered.
What if I need a different size?
We offer customisation options. Please contact [email protected] for a quote.
