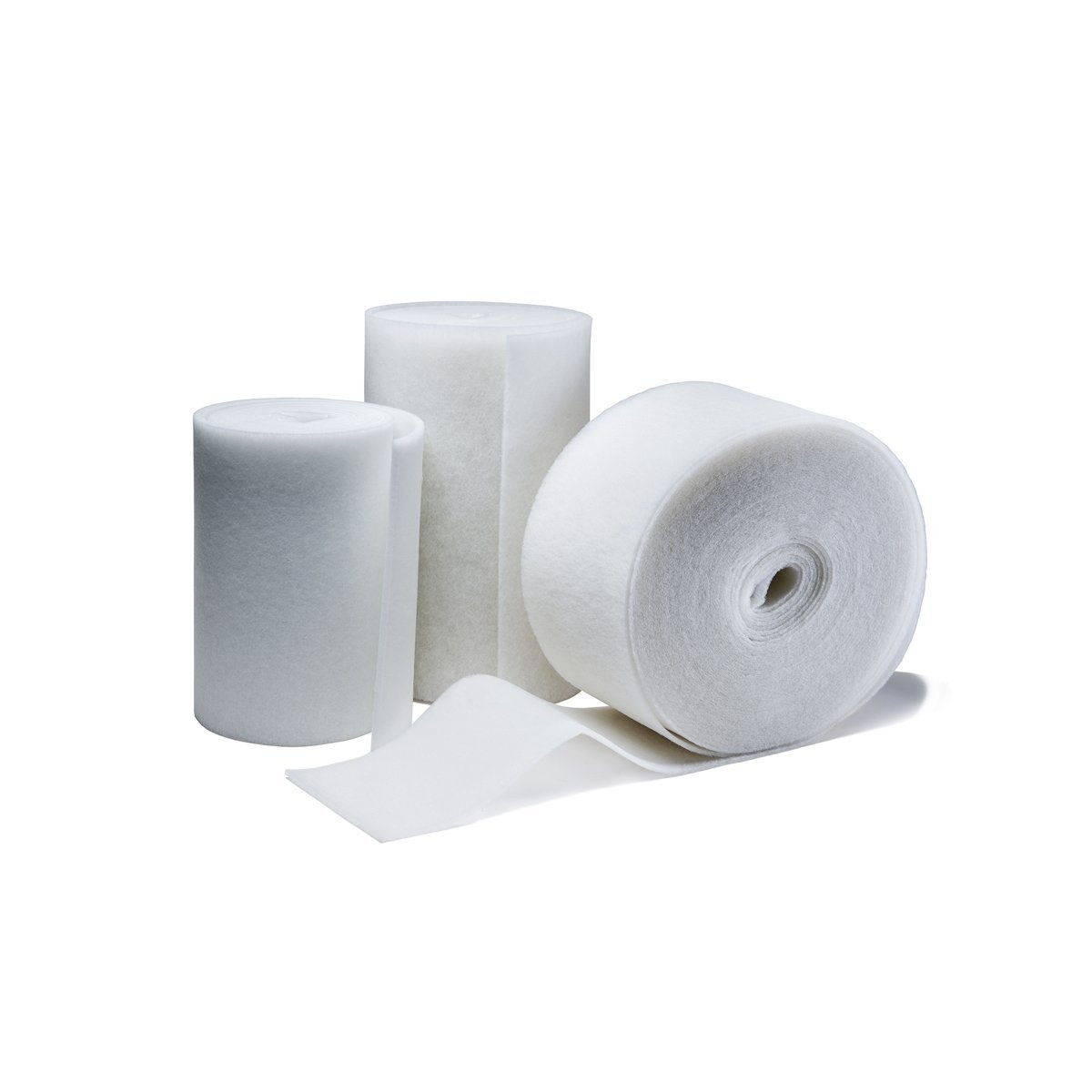

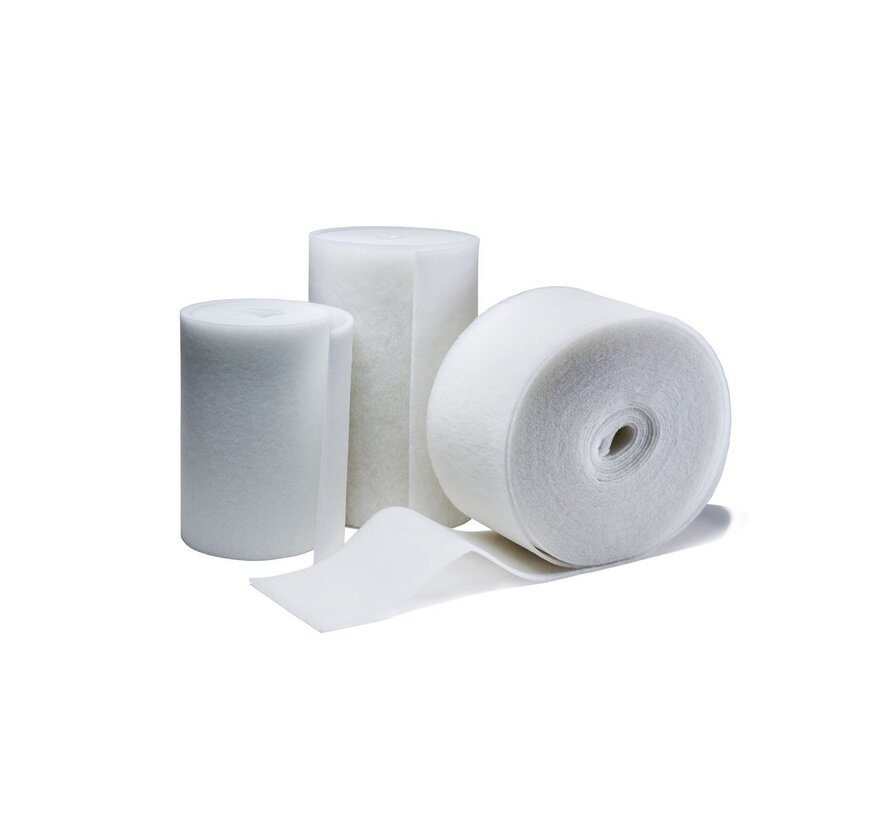

Filter cloth G3 - ISO Coarse 50% - 1000 x 1000 x20 mm.

Filter cloth G3 - ISO Coarse 50%- 20 mm - Series 290

Dimensions: 1000 x 1000 mm. - Nominal thickness: 20mm.

Do you need customised solutions? We are happy to provide a customised quotation without obligation.

Send your enquiry to: [email protected]

Air filter cloth designed for pre- or coarse filtration of the air intake in general ventilation and air handling systems installed in public buildings, offices, factories and all kinds of equipment.
Provides balanced dust separation in situations where high air volume or contaminated environments are a given.
The 290 series combines high dust collection with a relatively low pressure drop, making it extremely cost-effective with a long filter life.

The filter media is made of selected high-quality, non-breakable fibres in a multi-layer progressive density technique to ensure high depth loading with optimum performance at the lowest pressure drop, while gravimetric arrest and efficiency levels are achieved in accordance with EN 779 standard ratings.
The 290 series is partially thermally bonded and reinforced to ensure high dust absorption. Clean air sides are smoothed and printed for easy identification to ensure correct installation.

Technical data:

• TECHNICAL DATA

  Nominal airflow : 5400 m3/h/m2
  Air velocity : 1.5 m/s
  Initial pressure drop : 35 Pa
  Initial pressure drop : 250 Pa
  Average arresting rate : 62
  Dust holding capacity: 380 g/m2 (250Pa)
  Recyclable/washable: yes

  The 290 series complies with the European ISO16890 standard and European fire classification standards - NFF16-101 F1 classified, NF P 92-503 M1 classified, EN45545, DIN 53438-F1 and are self-extinguishing

For questions, suggestions or special filter requests, call 0513-648364 or email [email protected]
