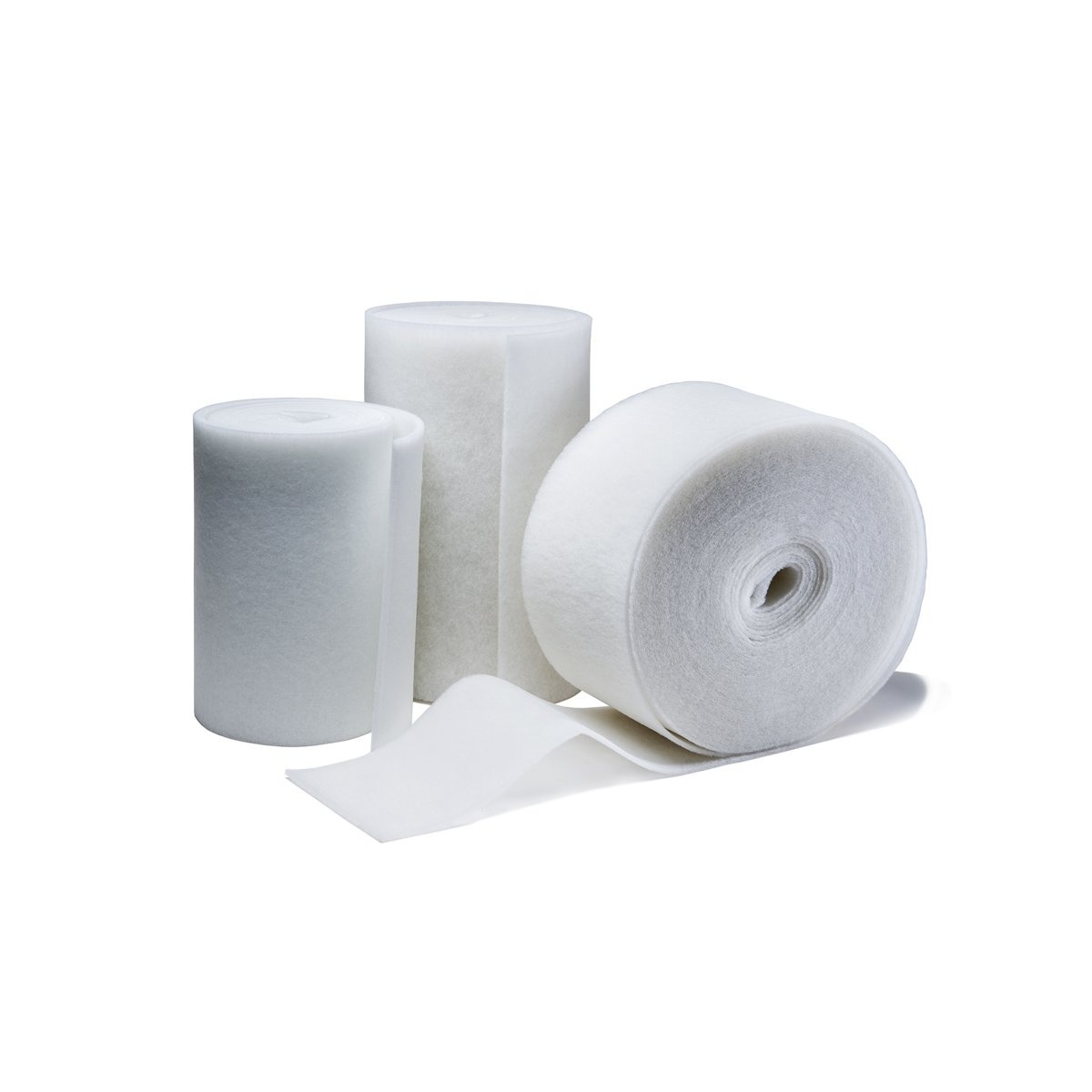

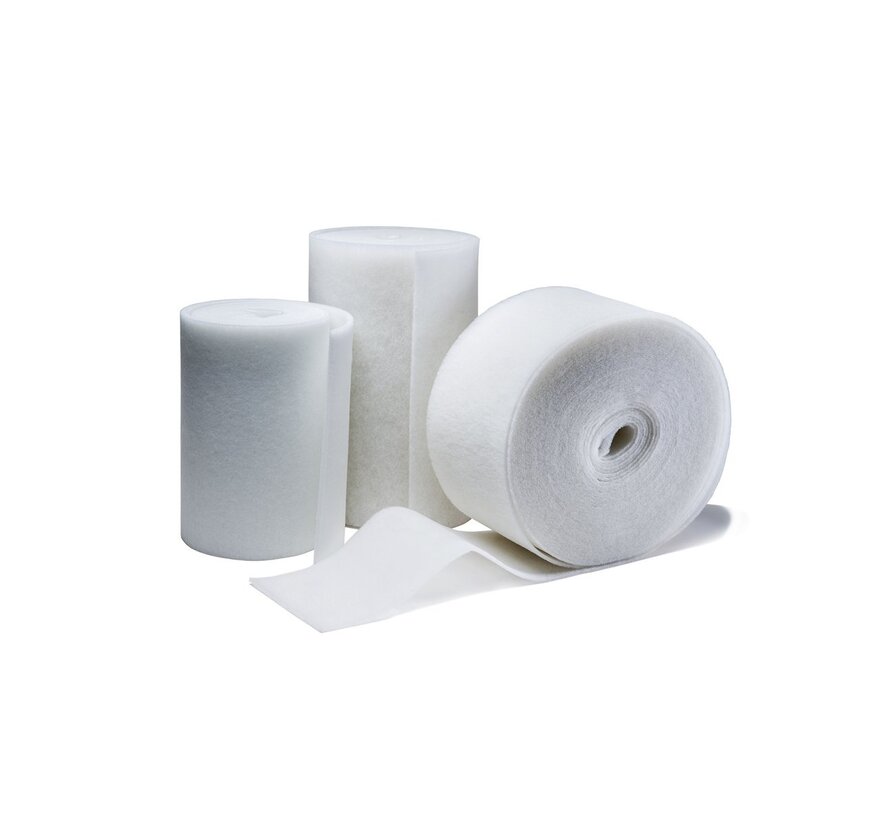

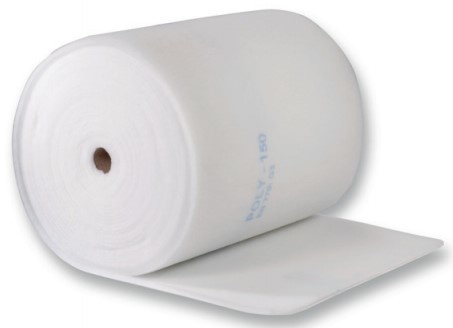

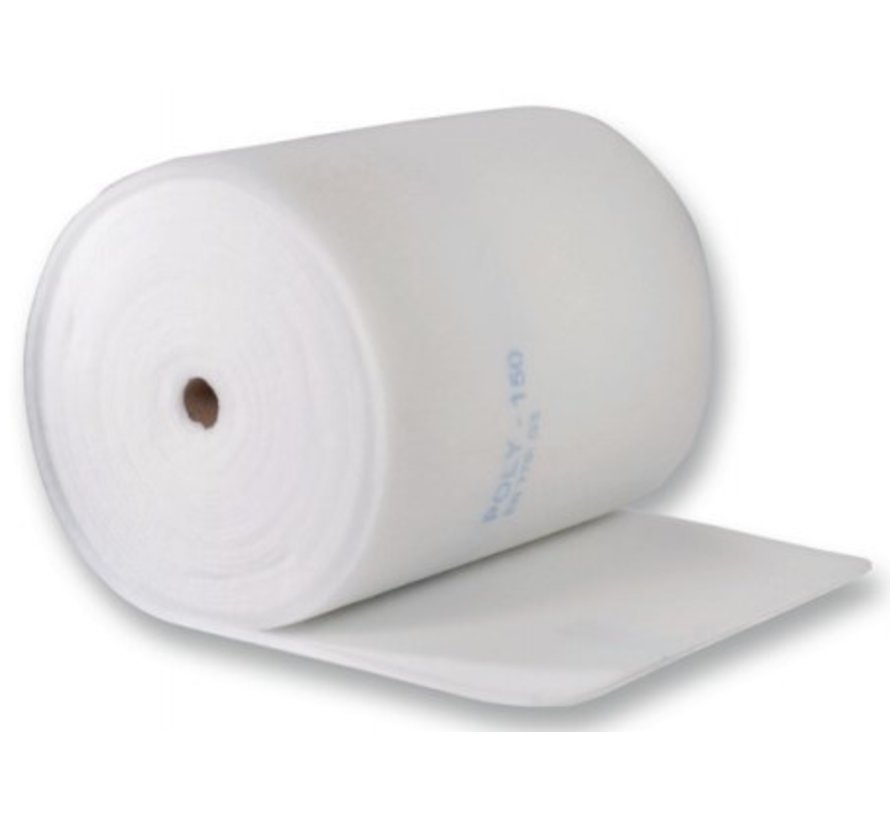

Filter cloth G3 - ISO Coarse 50% - 1000 x 2000 x20 mm.
Filter cloth G3 - ISO Coarse 50% - 20 mm | Series 290
Main points
| Feature | Value |
|---|---|
| Dimensions | 1000 x 2000 mm |
| Nominal thickness | 20 mm |
| Air flow | 5400 m3/h/m2 |
| Air speed | 1.5 m/s |
| Initial pressure drop | 35 Pa |
| Dust intake | 380 g/m2 (250Pa) |
| Washable | Yes |
| Fire classification | EN 45545, DIN 53438-F1 |
What is Filter Cloth G3 - ISO Coarse 50%?
Filter Cloth G3 - ISO Coarse 50% is a high-quality air filtration material specially designed for coarse air filtration. This filter cloth is widely used in ventilation and air treatment systems within public buildings, offices and industrial environments.
Applications of Filter Cloth G3
-
Air handling units in factories and offices
-
Pre-filters in HVAC systems
-
Industrial dust extraction
-
Protection of sensitive equipment from dust particles
Why choose Filter Cloth G3?
-
High dust absorption - Thanks to its progressive density, the cloth effectively captures dust.
-
Long service life - The combination of high dust pick-up and low pressure drop makes this a durable choice.
-
Energy-efficient - Low pressure drop means less resistance and therefore less energy consumption.
How does the filter cloth work?
Filter cloth G3 consists of multi-layered, non-breakable fibres that ensure efficient air filtration. Dust particles are collected in several layers, resulting in efficient filtration without restricting airflow.
Technical specifications
-
Nominal airflow: 5400 m3/h/m2
-
Air velocity: 1.5 m/s
-
Initial pressure drop: 35 Pa
-
Average arrest: 62%
-
Dust holding capacity: 380 g/m2
-
Fire rating: NF P 92-503 M1, EN 45545, DIN 53438-F1
How to install the filter cloth?
-
Measure and cut the cloth to size for your system.
-
Place the cloth in the filter holder or as a pre-filter in your air treatment system.
-
Check the airflow direction and make sure the smooth side faces the clean air side.
Maintenance and cleaning
This filter cloth is regenerable and washable, so it can be used several times before replacement is necessary. We recommend:
-
Check the cloth regularly for soiling.
-
Clean with compressed air or by rinsing with water.
Where to buy?
Order your filter cloth G3 - ISO Coarse 50% easily online via the WTW Filtershop.
Frequently asked questions (FAQ)
1. What does G3 mean in Filter Cloth G3?
G3 is a filtration class indicating that the cloth is suitable for coarse filtration and has an efficiency of around 50-65% for larger dust particles.
2. How often should I change my filter cloth?
The service life depends on the environment in which it is used. In industrial environments it may be faster than in an office building. Check the filter regularly and replace or clean it if necessary.
3. Can I have the filter cloth customised?
Yes, we offer customisation options. Contact us at [email protected] for a customised quote.
4. Is this filter compatible with all HVAC systems?
The G3 Filter Cloth is compatible with many HVAC systems, but always check the specifications of your air handling system before making a purchase.
5. How do I know if I need a G3 filter?
If you need an air filter that traps coarse particles without much resistance, a G3 filter is an excellent choice.
